★Acquire original signal of CMOS sensor OV6946, really restore image details, rich color levels.
★FPGA image processing algorithm, realize noise reduction, sharpening, amplification and other functions with ultra-low latency.
★Signal line can be up to 4m.
★High reliability, more than 2000V isolation of the sensor and processing board.
★Video recording function, supports high profile H. 264 video compression.

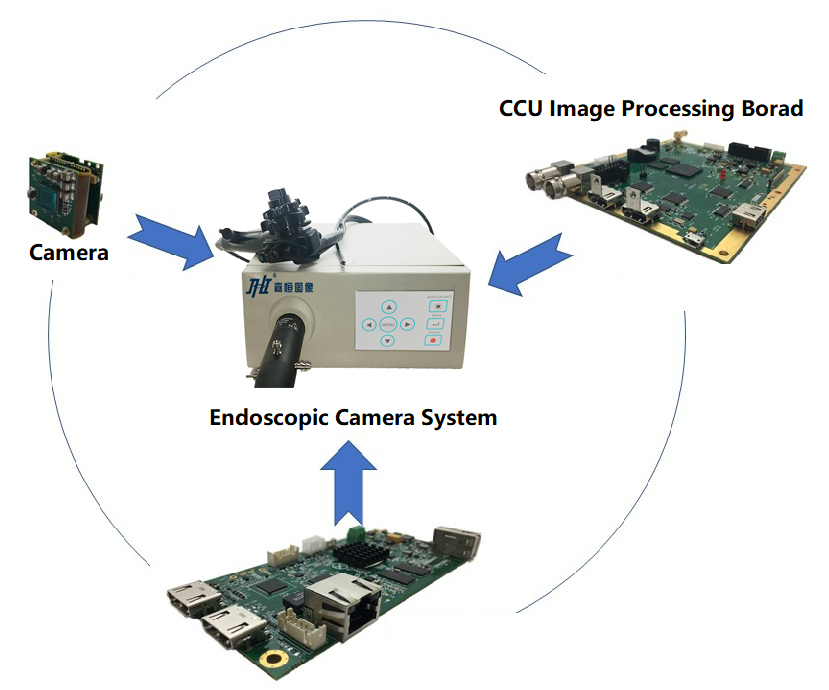

CCU Image Processing Board
Model | OK_ES201-A | OK_ES201-B |
Camera Chip | Motherboard with OV426 | External connection OV426 board |
Adaptive Sensor | OV6946（400×400）, 1/18” CMOS；OV6948(200×200)，1/36”CMOS | |
Output | DVI（1024×768P@60Hz）, CVBS（720×576） SVIDEO（720×576） | |
Image Processing | Noise reduction, color rendition, edge enhancement, contrast adjustment, image magnification, dead pixel elimination | |
View frame mode | Panoramic frame, octagonal frame, round frame | |
White Balance | One button for automatic white balance | |
Photometry | 2 types - Average/Peak, optional region | |
Parameter Adjustment | Brightness, R/G/B Saturation, Sharpness, Gamma, Magnification | |
Panel Button | Menu, White Balance, Freeze, Save etc. | |
Image Saving | Resolution：720 x 576, Format：BMP, Quality：Non-destructive | |
Video Saving | Resolution：720×576, Format：H.264, Code Rate：4Mbps | |
Memory | U disk or mobile hard disk in FAT32 format | |
Menu Language | Chinese, English | |
Dimension | Signal processing board 16 x 36×10（mm） Image processing board 140×140×20（mm） | |
Power | Voltage：12V，Current：2A | |
